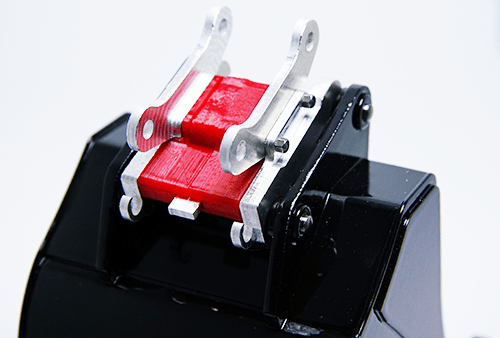

Quick coupler for the O&K R6.6 (scale 1:14,5)

Quick coupler for the Volvo O&K R6.6 Hydraulic in 1:14,5 scale.
This Quick coupler is made of PETG and has milled aluminium plates as holders.
This quick coupler was printed from PETG. The material is UV stable, temperature resistant up to 80°C and waterproof.

The middle quick coupler piece is operated manually, to change an attachment quickly you simply have to press on the middle aluminium piece.

This can be quickly disassembled and cleaned.

Pre-orders are possible, please use our contact form or at service@exapur.com.

• Dimensions: (HxLxW) 27,4 mm x 50 mm x 32 mm
• Bolt diameter: approx. 4 mm
• Holder distance (plate distance): 19,2 mm
• Bore distance: 35 mm

Content:

• 2x 3D printed parts
• 4x screws
• 4x aluminium plates
• 1x Spring
• 1x Aluminium locking bar
